Product Description
A DC Rectifier system converts alternating current (AC) to direct current (DC) and provides the power necessary to charge batteries and offer power to DC loads.

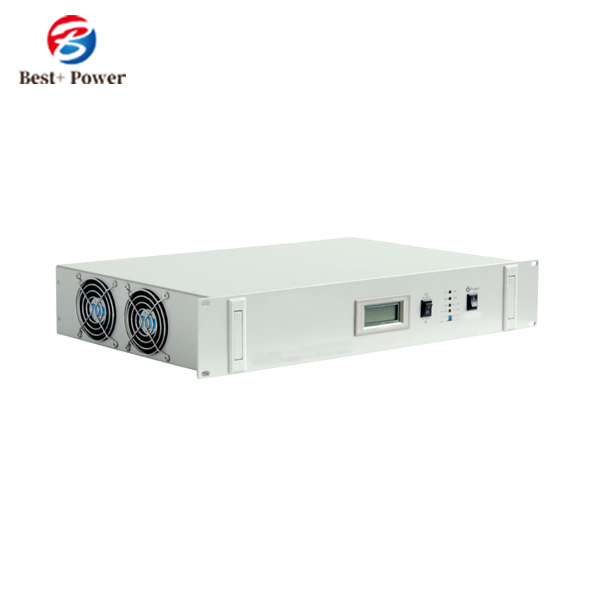

The 48Vdc 50A Rectifier Power Supply is a high-frequency switching rectifier, which meets the power supply requirements of the 110VAC grid system or the 220VAC grid system for input, of which wide input voltage range is suitable for areas where the grid voltage fluctuates greatly.
Aimed at the working environment of small and medium communication systems and designed in accordance with international standards, The Rectifier Power Supply can supply power for various small switching equipment, microwave communications, digital products, optical fiber transmission and other communications equipment.
The Rectifier Charger DC Power Supply can be used to easily form a power supply system for communication equipment. The Rectifier Charger DC Power Supply adopts advanced dual-tube forward switch technology and adopts isolation design between modules to prevent mutual influence between modules. The Rectifier Charger DC Power Supply adopts a standard chassis with a width of 19 inches and a height of 2U, which is easy to install.
Ask for Quote: export@bestpluspower.com
Product Application
Program Control Exchange
Access Network
transmission device
Mobile communication Station
Satellite communication ground station
Microwave communication power supply
Product Parameter
|
48Vdc 50A Rectifier Charger / DC Power Supply |
||
|
Model No. |
BP-DC4850C | |
|
Input |
Voltage | 220Vac (170Vac～260Vac) / 110Vac (90Vac～160Vac), Single Phase |
|
Frequency |
45-66Hz |
|
| Power Factor |
≥0.99 |
|
|
Output |
Voltage |
48Vdc |
|
Vol. Range |
42V-59V dc | |
| Current |
50A Max |
|
| Power |
2400W Max |
|
|
Display |
LCD | |
|
Stabilization Accuracy |
≤±2V | |
| Peak-to-peak noise Voltage |
≤150mV (20MHz bandwidth) |
|
|
Protection |
Overvoltage, Undervoltage; Output overload, Short circuit, Over temperature, etc. |
|
|
Environment |
Tem. |
-40°C – 70°C |
|
Hum. |
≤95% |
|
| Dimension |
482x88x300mm |
|
