Description
Product Description
A rectifier charger transforms alternating current (AC) into direct current (DC). Its normal function is charging batteries and keeping them in optimum conditions while, at the same time, providing DC power for other loads.
The embedded communication power supply system (Rectifier System) is suitable for small program-controlled switches, access networks, transmission equipment, mobile communications, satellite communications ground stations, microwave communications power supply, and can also be used for power supply for other communications equipment. Under normal circumstances, various parameters of the rectifier module and power distribution unit are controlled by the monitoring module, and work according to their predetermined parameters or user commands. If the mains fails, the system will be powered by the battery at this time. As the battery discharges, the battery terminal voltage begins to drop. When the battery voltage is lower than the 46V dc (Alarm Value can be settable) battery low-voltage alarm point from monitor, the monitoring module reports an alarm. Signal, directly close the load output, the whole machine does not work. When the external mains power is restored, the system resumes normal operation.
Battery assisted rectifier systems as equivalent power supply in case of power failure or system incidents in public network.
48Vdc Switched Modular Rectifier Battery Charger System.
Product Feature
1) The rectifier module adopts active power factor compensation technology, and the power factor value reaches 0.99.
2) The normal working range of AC input voltage is wide to 90～290V, Single Phase, (323V~480V ac, 3 Phase).
3) The rectifier module adopts full-bridge soft-switching technology, and the efficiency is up to 96%.
4) Smart battery management. There are load power-off and battery low-voltage protection (LVLD+LVBD) and secondary power-off (secondary power switch) functions, which can realize functions such as temperature compensation, automatic equalization and floating charge control, automatic voltage regulation, battery capacity calculation, and online battery testing.
5) The rectifier module adopts non-damage hot-swappable technology, plug and play, and the replacement time is less than 1min.
6) Networked design, providing multiple communication interfaces (such as RS485, dry contact), flexible networking, real-limited local and remote monitoring, unattended.
7) Lightning protection design for AC and DC sides, suitable for thunderstorm areas.
8) Support fault protection and fault alarm functions.
9) Friendly operation and maintenance can be installed against the wall, effectively saving space.
10) Ultra low radiation. Adopt advanced electromagnetic compatibility design.
Ask for Quote: export@bestpluspower.com
Product Application
Program Control Exchange
Access Network
transmission device
Mobile communication Station
Satellite communication ground station
Microwave communication power supply
Product Parameter
|

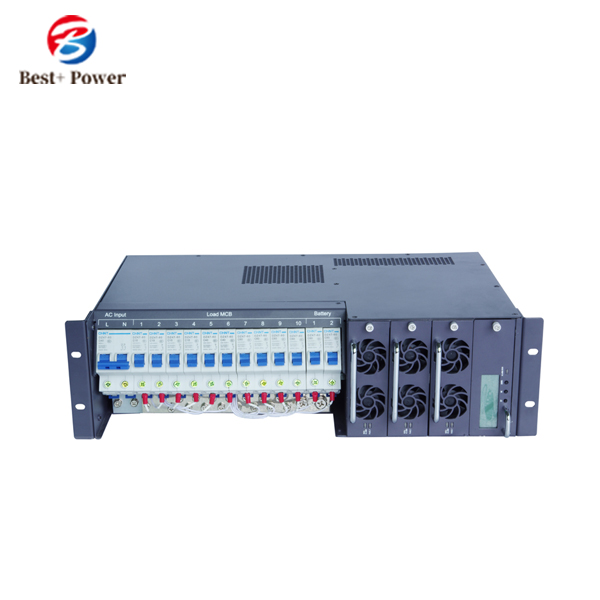

48V 90A Rectifier Battery Charger |
||
|
Model No. |
BP-DC4890M |
|
|
Input |
Input Voltage | AC 90～290V, Single Phase, (323V~480V, 3P) |
|
Frequency |
45-66Hz |
|
| Power Factor |
≥0.99 |
|
|
Output |
Output Voltage | -48Vdc / 48Vdc |
|
Vol. Range |
42-58V dc | |
| Output Current |
90A Max |
|
| Output Power |
5400W Max |
|
|
Display |
LCD Monitor |
|
|
Battery LVD |
YES | |
|
Communication |
RS-232、RS-485、TCP/IP（RJ45）(Option) |
|
| Dry Contact |
Yes |
|
|
Stabilization Accuracy |
±1% |
|
|
Peak-to-peak ripple |
≤200mV (0 MHz-20 MHz) |
|
|
Load Sharing |
±5% |
|
|
Protection |
Overvoltage, Undervoltage; Output overload, Short circuit, Over temperature, etc. |
|
|
Environment |
Tem. | -40°C – 70°C |
| Hum. |
≤95% |
|
|
Dimension |
482x290x129mm |
|
Ask for Quote: export@bestpluspower.com
