Best Plus Power Co., Ltd export@bestpluspower.com
DC Power Supply Factory

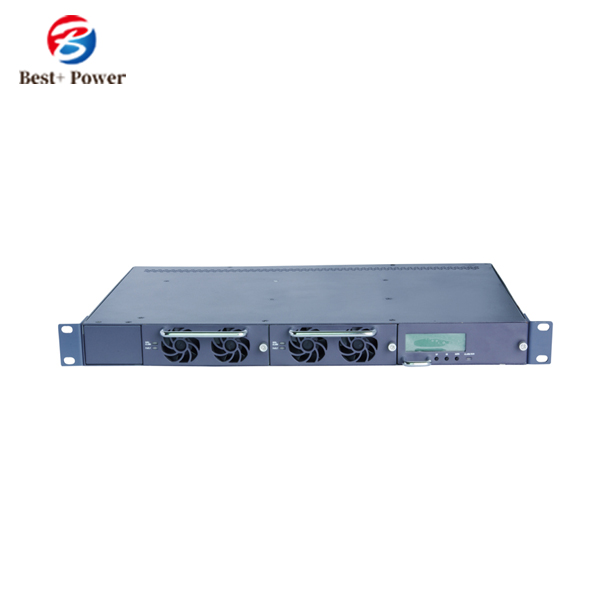

48V 30A Battery Charger

-48V 30A Rectifier System DC Power Supply
AC to DC -48V Telecommunication Power Supply
Model No.: BP-DC4830
Input Voltage: AC 90-290V
Output Voltage: DC48V (42-58V)
19 inch subRack Modular Plug-in Type
Adopts active power factor compensation
technology, and the power factor value reaches 0.99.
Application: Telecom / Communication Power Supply
Contact Inquiry: export@bestpluspower.com

Description

Product Description
The embedded communication power supply system (Rectifier System) is suitable for small program-controlled switches, access networks, transmission equipment, mobile communications, satellite communications ground stations, microwave communications power supply, and can also be used for power supply for other communications equipment. Under normal circumstances, various parameters of the rectifier module and power distribution unit are controlled by the monitoring module, and work according to their predetermined parameters or user commands. If the mains fails, the system will be powered by the battery at this time. As the battery discharges, the battery terminal voltage begins to drop. When the battery voltage is lower than the 46V dc (Alarm Value can be settable) battery low-voltage alarm point from monitor, the monitoring module reports an alarm. Signal, directly close the load output, the whole machine does not work. When the external mains power is restored, the system resumes normal operation.
Product Feature
1) The rectifier module adopts active power factor compensation technology, and the power factor value reaches 0.99.
2) The normal working range of AC input voltage is wide to 90~290V.
3) The rectifier module adopts full-bridge soft-switching technology, and the efficiency is up to 96%.
4) Smart battery management. There are load power-off and battery low-voltage protection (LVLD+LVBD) and secondary power-off (secondary power switch) functions, which can realize functions such as temperature compensation, automatic equalization and floating charge control, automatic voltage regulation, battery capacity calculation, and online battery testing.
5) The rectifier module adopts non-damage hot-swappable technology, plug and play, and the replacement time is less than 1min.
6) Networked design, providing multiple communication interfaces (such as RS485, dry contact), flexible networking, real-limited local and remote monitoring, unattended.
7) Lightning protection design for AC and DC sides, suitable for thunderstorm areas.
8) Support fault protection and fault alarm functions.
9) Friendly operation and maintenance can be installed against the wall, effectively saving space.
10) Ultra low radiation. Adopt advanced electromagnetic compatibility design.
Ask for Quote: export@bestpluspower.com
Product Application
Program Control Exchange
Access Network
transmission device
Mobile communication Station
Satellite communication ground station
Microwave communication power supply
Product Parameter

48V 30A DC Power Supply

Model No.

BP-DC4830

Input

Voltage AC 90-290

Frequency

45-66Hz

Power Factor

≥0.99

Output

Voltage -48Vdc / 48Vdc

Vol. Range

42-58V dc
Current

30A Max

Power

1800W Max

Display

LCD Monitor

Battery LVD

YES

Communication

RS-232、RS-485、TCP/IP(RJ45)(Option)

Dry Contact

Yes

Stabilization Accuracy

±1%

Peak-to-peak ripple

≤200mV (0 MHz-20 MHz)

Load Sharing

±5%

Protection

Overvoltage, Undervoltage; Output overload, Short circuit, Over temperature, etc.

Environment

Tem. -40°C – 70°C
Hum.

≤95%

Dimension

482x350x43.6mm

Ask for Quote: export@bestpluspower.com
